VK Link efficiency
| Filter efficiency |
99.995% |
|---|
| Airflow |
220–270 CFM |
|---|
| Filter face area |
0.084 m2 |
|---|
| Static pressure drop (max fan speed) |
230Pa |
|---|
200mm inline fan performance
| Model |
VTRONIC W200-1 |
|---|
| Weight |
4.1kg (9lbs) |
|---|
| Dimensions (mm) |
350 × ⌀220 |
|---|
| Dimensions (in) |
13.8 x ⌀8.7 |
|---|
| Reducer |
⌀200mm |
|---|
| Noise |
52–58 dB |
|---|
| Airflow |
336–500 CFM |
|---|
| Electrical input* |
110–120V AC, 50–60Hz |
|---|
|
220–240V AC, 50–60Hz |
|---|
| Maximum power (220–240V) |
131W |
|---|
| Maximum power (110–120V) |
160W |
|---|
| Maximum current (220–240V) |
0.590A |
|---|
| Maximum current (110–120V) |
1.450A |
|---|
| Speed |
1650–2450 rpm |
|---|
| Air pressure |
167–370 Pa |
|---|
* Ensure you are using the correct voltage for your region.

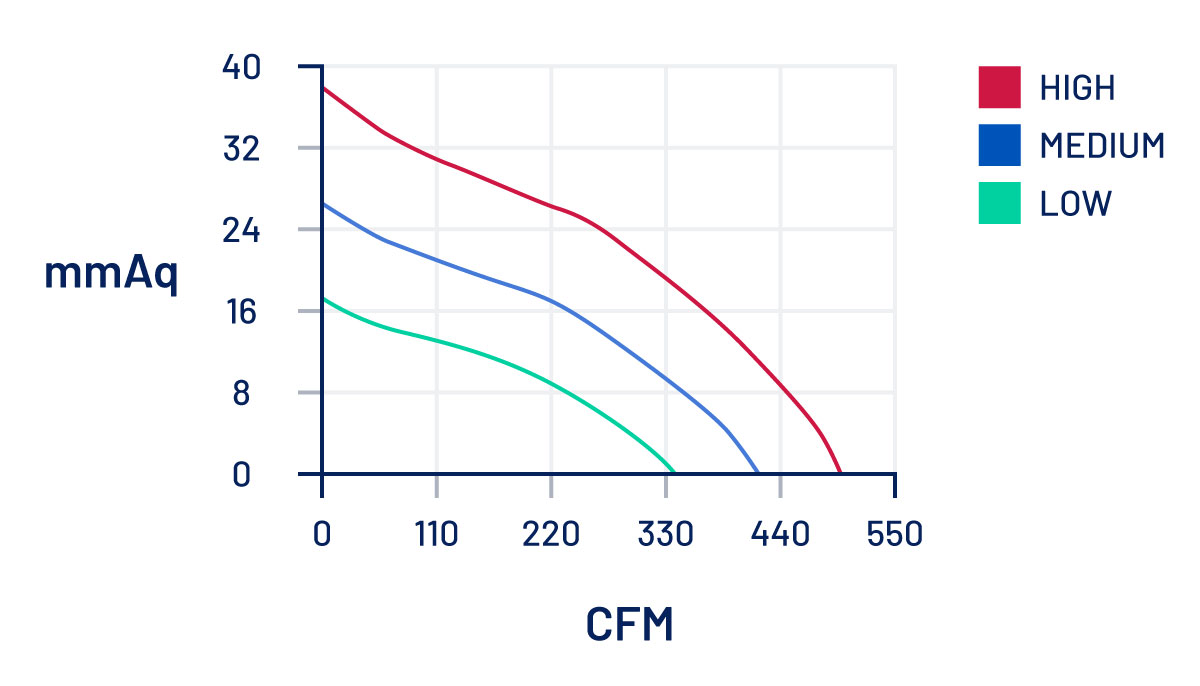

200mm inline fan curves
